SPECIFICATIONS:

  • Body Structure Stainless Steel 304 and M/S Powder Coated.
  • Machine Size: Length-7200mm. Width-1400mm. Height-1200mm.
  • Machine Weight: 700KG Approx.
  • Tube Feeding with Unscrambler Attach Conveyor System.
  • 2D Barcode Inspection with Auto Rejection System.
  • Auto Counting and Bunching System.
  • Tube Size: Round - Ø25m/Ø32m/Ø40m - Length As per your Standard.
  • Production Speed: 80/100 Per Minute.(Depend on tube shape, size & weight)

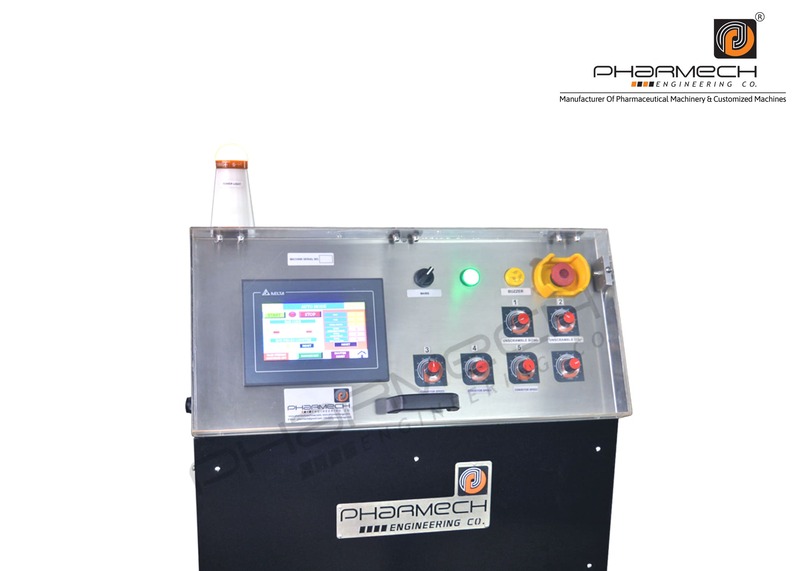

  • HMI & PLC Control Base System. (Make Delta)
  • Barcode all Data Save HMI through P.C. (P.C. Customer Scope)
  • Power Supply: Single Phase, 230Volts.
